Description

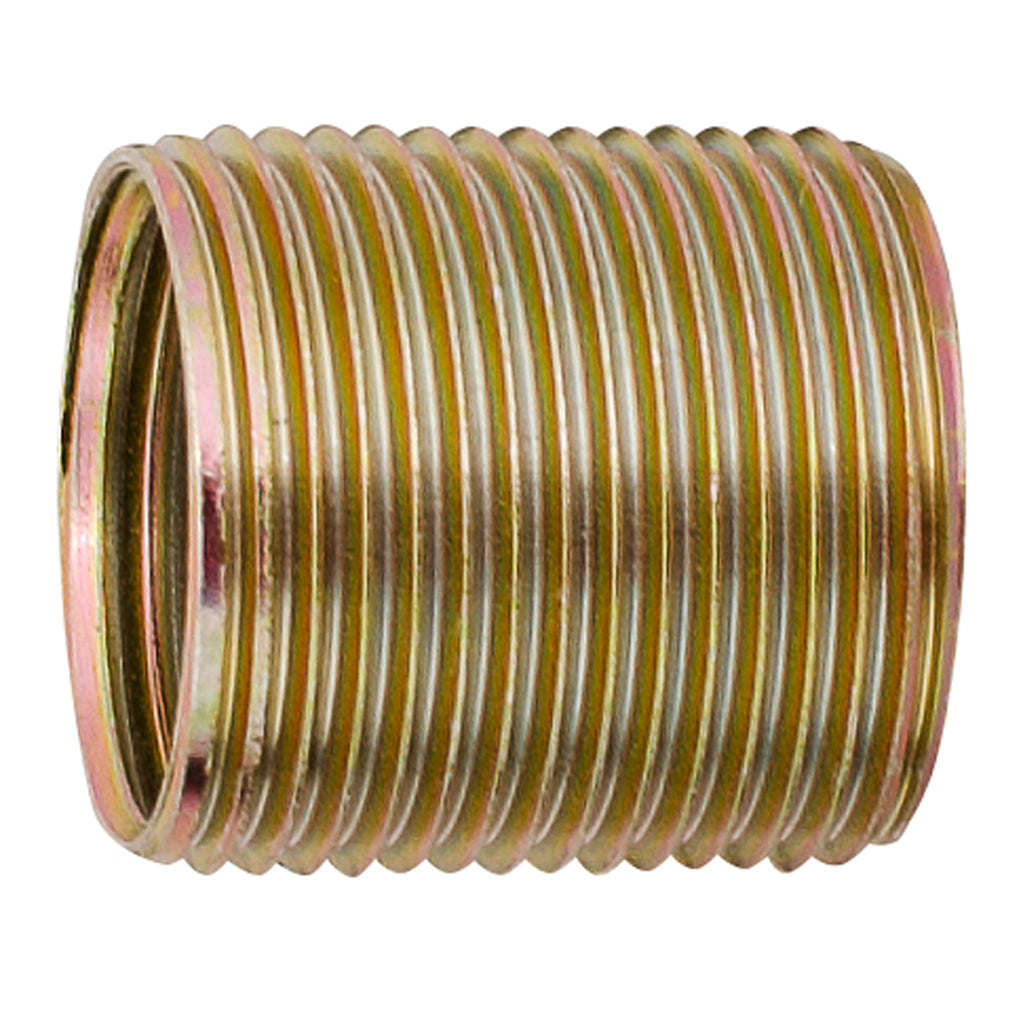

stripped pedal threads Right Pedal Thread InsertThe Right Pedal Thread Insert 1695. 3A is the rescue part for a stripped right hand pedal thread. The insert installs into a freshly reamed crank arm hole and accepts a standard right hand 9 16" 20 TPI pedal. After the thread locker cures, the crank takes the original right hand pedal at full working torque. The "right" designation matters: the right pedal threads in the standard clockwise direction, and the insert's inner thread is sized to match.
The Right Pedal Thread Insert 1695.3A is the rescue part for a stripped right-hand pedal thread. The insert installs into a freshly reamed crank arm hole and accepts a standard right-hand 9/16" × 20 TPI pedal. After the thread locker cures, the crank takes the original right-hand pedal at full working torque.
The "right" designation matters: the right pedal threads in the standard clockwise direction, and the insert's inner thread is sized to match. The Left Pedal Thread Insert handles the left-hand pedal thread (which is reverse-threaded by bicycle convention to prevent loosening under pedaling).
How the insert sits in the rescue workflow
The complete rescue:
-
Ream the failed thread. The 1695.1AR Right Reaming Tap cuts the failed thread away and cuts a new thread pattern sized for this insert. Use the Handle for Pedal Taps 1695/4BI for leverage and alignment.
-
Thread-lock the insert. Apply a strong thread locker (green or red typical) to the outer thread of the insert.
-
Install the insert into the reamed hole. Hand-thread until flush with the crank face. Don't over-torque; the locker does the holding work.
-
Cure. 24 hours typical for a strong cure. The pedal can be installed normally after curing.
Material and form
The insert is a solid steel sleeve; not a spring-coil thread insert. The solid form holds the thread profile under cyclic load better than a spring insert; pedals see hundreds of millions of force-cycles over a working lifespan, and the insert's job is to stay rigid through all of them.
The outer thread is sized to match the cut profile of the 1695.1AR reaming tap. The inner thread is the standard 9/16" × 20 TPI right-hand pedal thread, identical to a stock crank's pedal hole.
What's in the pack
10 inserts per pack. A working shop uses inserts on every Crank Saver service; stocking by the pack is the working-shop economics.
Specs
- Right-hand thread, 9/16" × 20 TPI inner
- Outer thread sized for 1695.1AR Right Reaming Tap
- 10 inserts per pack
- Solid steel sleeve
- Article number: 1695.3A (right-hand variant)
Built in Zreče, Slovenia
Unior has been forging hand tools in Zreče since 1919, and is the official technical partner of multiple World Tour and downhill teams. The 1695.3A is part of Unior's purpose-built pedal-thread-rescue system. The complete kit (taps, handle, inserts) is sold as the Crank Saver Kit for shops setting up the full workflow; individual components are stocked for shops re-supplying consumables.
Pro tip from our mechanics
The cure time on the thread locker is the most-skipped step in pedal-rescue jobs. A shop that installs the pedal "right away" because the customer is waiting often gets a callback for a loose insert two months later. A reliable pedal-rescue workflow includes the cure time on the schedule. Our workshop hand tools guide walks through the workflow and the rest of the workshop hand-tool layer: Workshop hand tools every bike shop needs →
